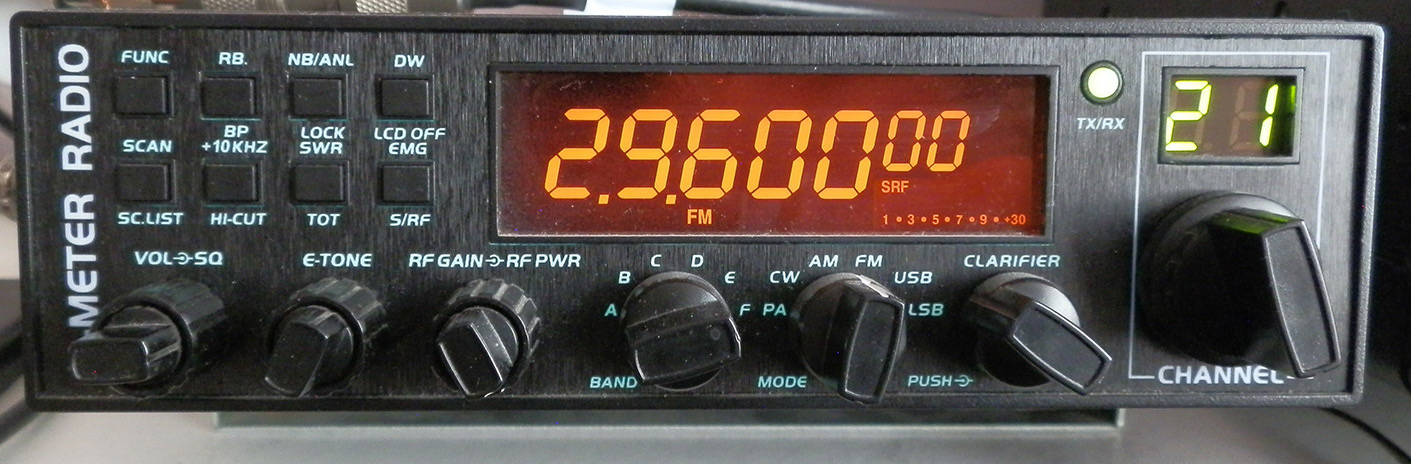

This is the AnyTone AT5555 all mode transceiver covering 10 and 11 metres. The radio covers 28 to 29.7 MHz and can be easily switched to 25.165 to 28.305. RF Power max 12W AM/CW, 40W FM, 40W SSB.

Anytone AT5555 10 metre transceiver

Technical info:

Frequency steps: 100Hz/1kHz/10kHz/100kHz/1MHz
Operating voltage: 13.8v DC
Antenna connector: SO239 type
Transmit power: AM : 60watts / FM 50watts / SSB 60watts (PEP)
Modes: AM/FM/LSB/USB
Frequency Range: 28.000-29.700 (programmable)
Frequency Range: 25.615-30.105 MHz (programmable)
Bands: A/B/C/D/E/F/G/H/I
Channels: 40 (programmable in each band)

Instruction Manual here.
