Audio Introduction.




Morse code was first used in about 1844. Messages were received via indentations on paper tape. In the late 1800s, Morse code was used for radio communication. This was long before voice transmission via radio was possible. In the late 19th and early 20th centuries, international communication used Morse code on telegraph wires and radio transmission.

It was developed by Samuel Morse and Alfred Vail in the 1830s. Samuel Morse was inspired to create a system of electrical communication after seeing a demonstration of an electromagnet by G4NSJJoseph Henry in 1828. Morse and Alfred Vail, who was an inventor, developed the telegraph system.

Initially, Morse and Vail used a simple code consisting of dots and spaces to represent letters of the alphabet. This was far too slow for any practical use. They eventually decided on an improved system of dots and dashes, each representing a unique letter.

Morse code was first used for commercial communication in 1844, when the first telegraph line was established between Washington, D.C. and Baltimore. The message sent over the line by Morse himself was… what hath God wrought. The code became the standard system for telegraph operators around the world and was used during both world wars for military and maritime communication.

Back in early 2020, I had my first CW contact in almost 40 years! I’m enjoying the key once again and brushing up on my speed. I’m now listening, and sometimes calling CQ, on 28.058MHz when the band is open. This is the FISTS novice frequency for slow Morse, (QRS) contacts. You don’t have to be a FISTS member to join in.

Why the 10 metre amateur band? Because it’s normally free from interference, it’s a wide band with plenty of room, and it’s great for local as well as DX contacts.

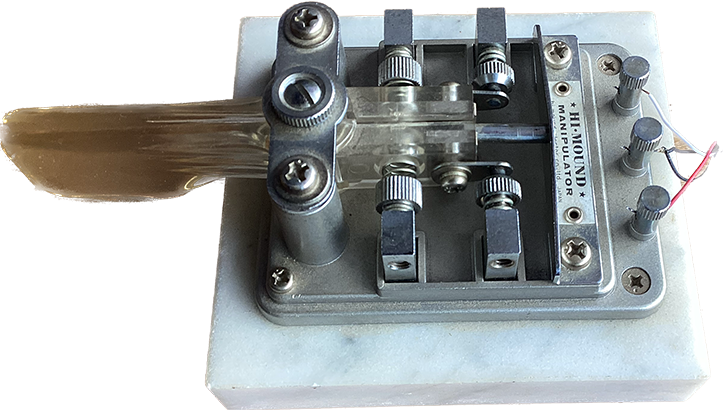

Hi-Mound Manipulator MK-701

I bought this key (above) from a friend of mine, thanks Barry. It’s a Hi-Mound Manipulator MK-701 with single a paddle. I used to have a proper Iambic key with two paddles but, regrettably, I no longer have it. Perhaps I’ll get one, if I’m lucky.


I’ve just bought a dual paddle Iambic key! It’s a Hi-Mound MK-703, used but in great condition. I began using a twin paddle key in the early 1980s, exactly like the one shown here, and I really have missed it. To be honest, I didn’t use it in true Iambic mode. For the straight key brigade shaking their heads negatively, I also use my straight keys.

Morse Key Hi-Mound dual paddle MK-703

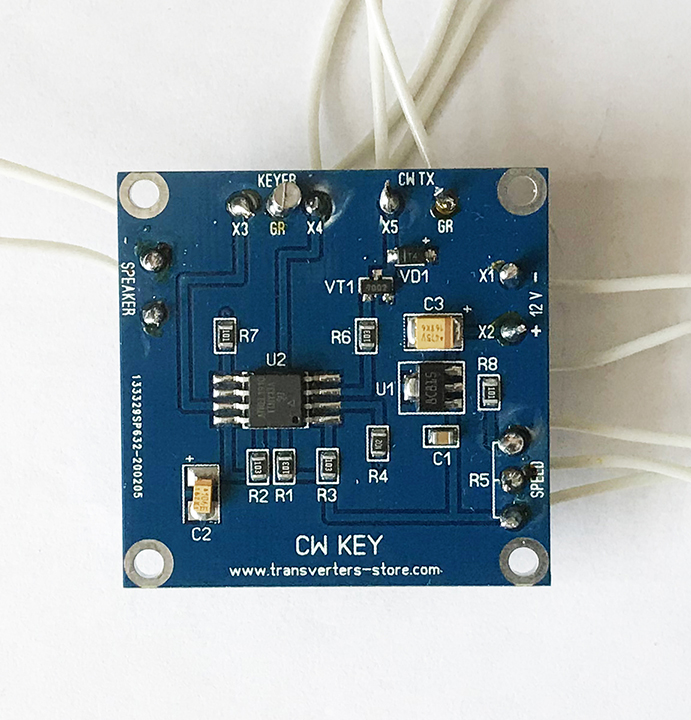

Below is my Iambic keyer for the above key, assembled and waiting to be mounted in a box. The radios I use have built-in electronic keyers but I prefer an outboard one because I then have a speed control knob  I can’t go into settings to change speed when I’m in a QSO.

CW Iambic keyer

And this one (below) is a Czech army issue straight key from the early 1950s.

Czech army issue straight key

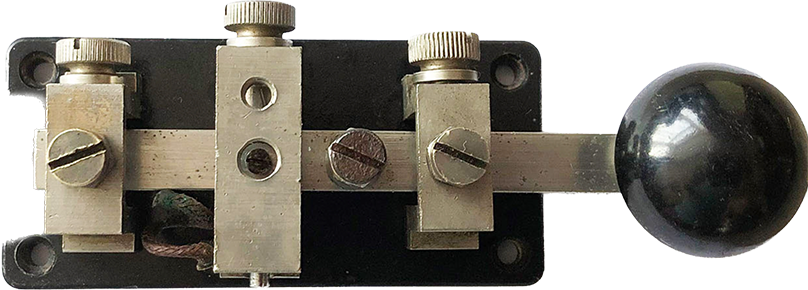

I’ve just acquired this lovely WT 8 AMP MkII Morse key, shown below. Thanks Tony! Although this is a very basic key, it’s lovely to use.

Morse key 8 amp



I’ve now added a WT 8amp No2 key to my collection. This differs slightly from the one above. Apart from the three bridges, the main difference is the key down contacts are located at the back of the key, not at the front as with most keys. This key was in a terrible state, so I stripped it down completely and cleaned it up.

Morse key WT 8amp No2

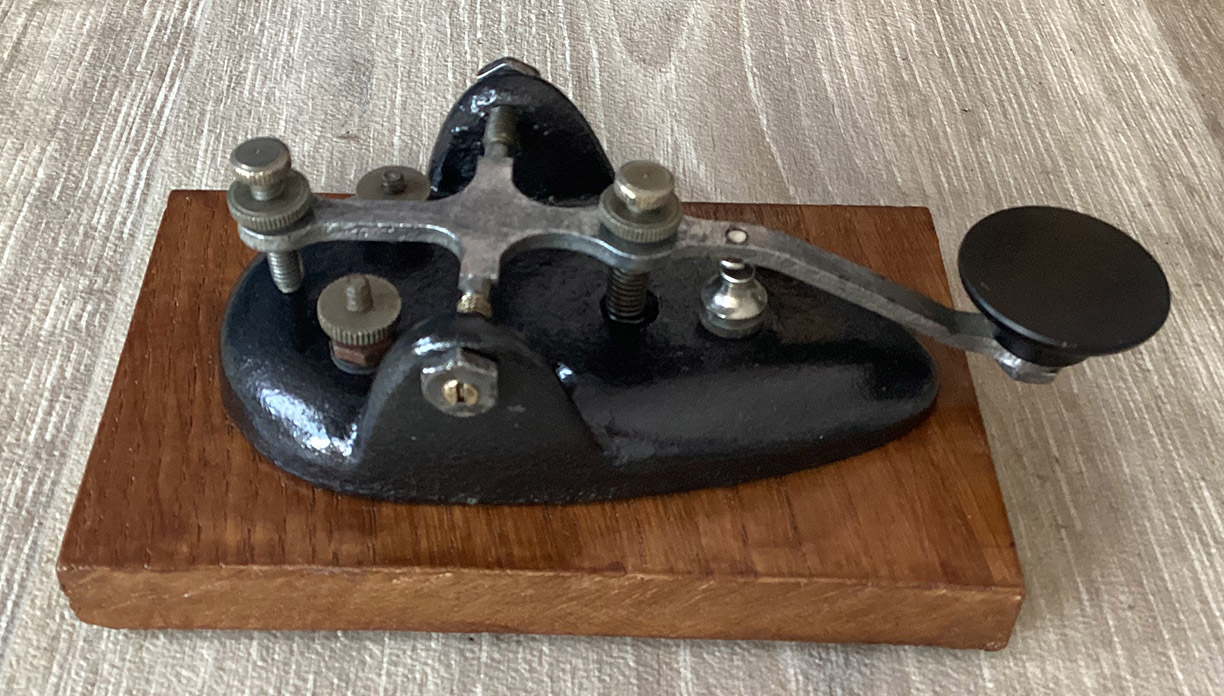

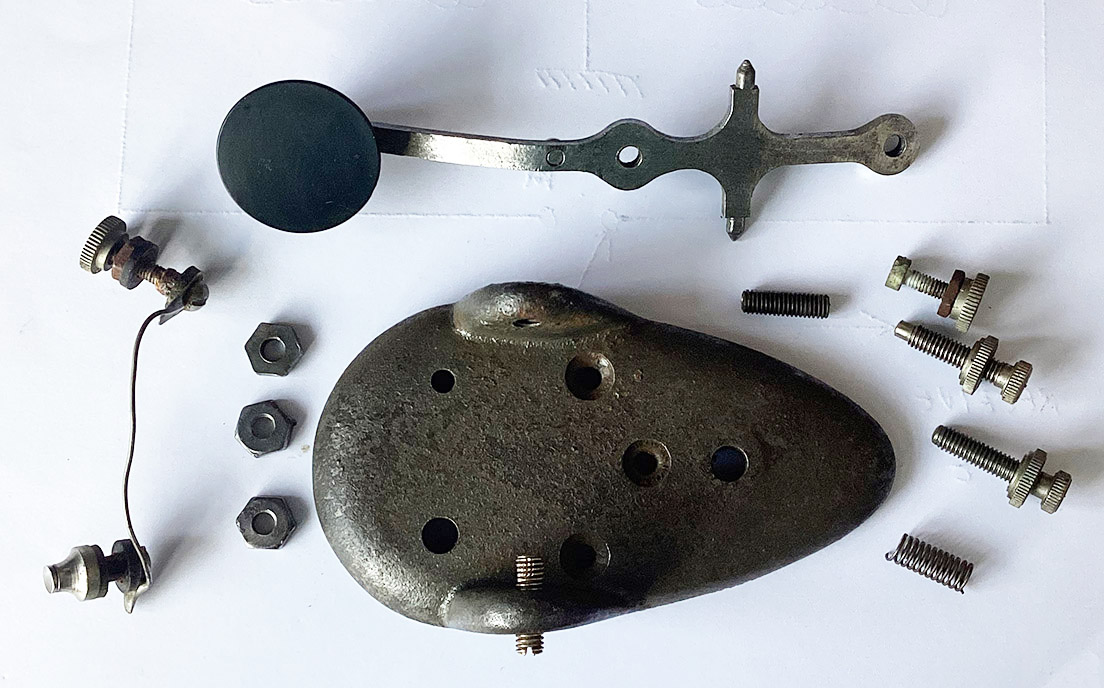

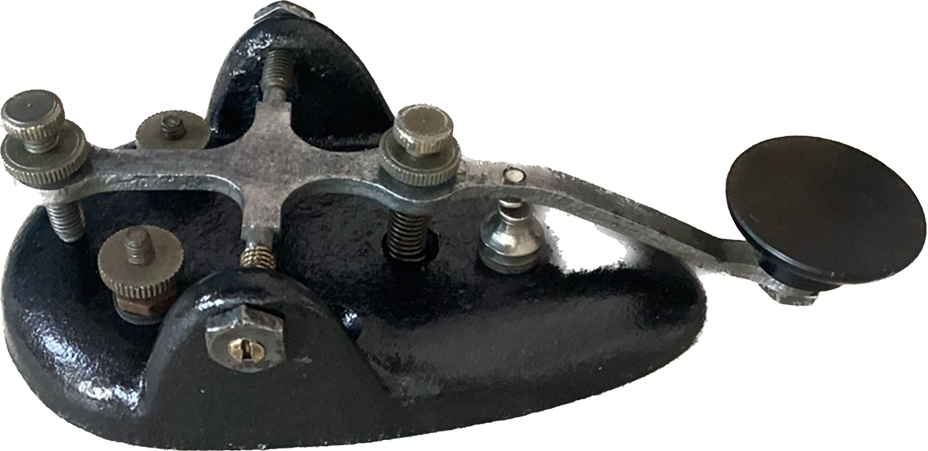

I’ve been lucky enough to get hold of this Grimmer Watson Canadian military key. I believe they were used in WWI and WWII. Or is it a McElroy Stream Key? I took it apart to restore it, left photo. The cast iron base was pretty rusty but the dishwasher and a wire brush have cleaned it up pretty well. The next job was to paint it. I used black Hammerite as it’s the closest to the original paint job. Finally, I mounted it on a varnished oak base.

Grimmer Watson

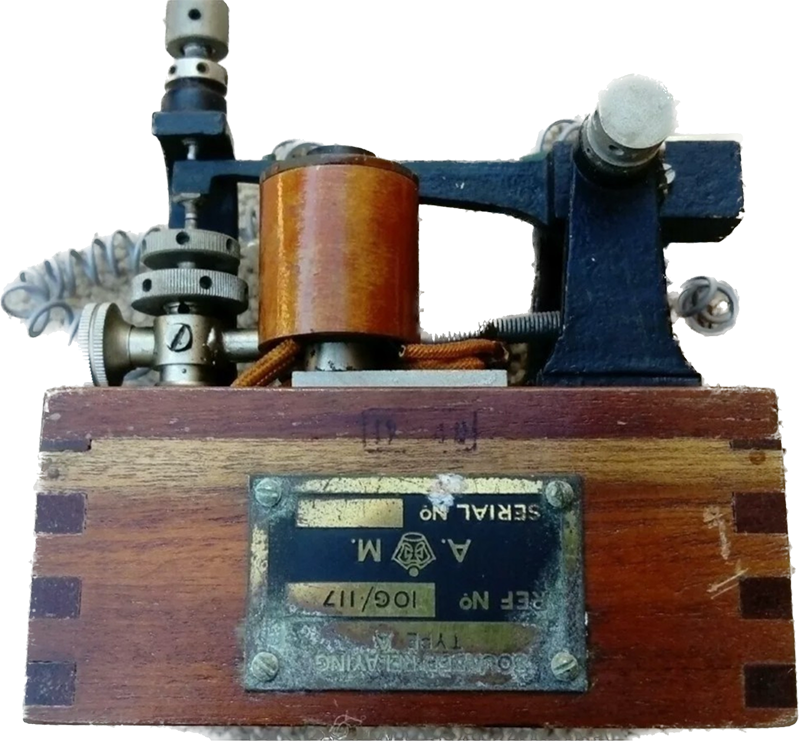

I’ve just purchased a Morse sounder relayer. See photo below. You can learn more about the sounder here.

Morse code sounder relayer

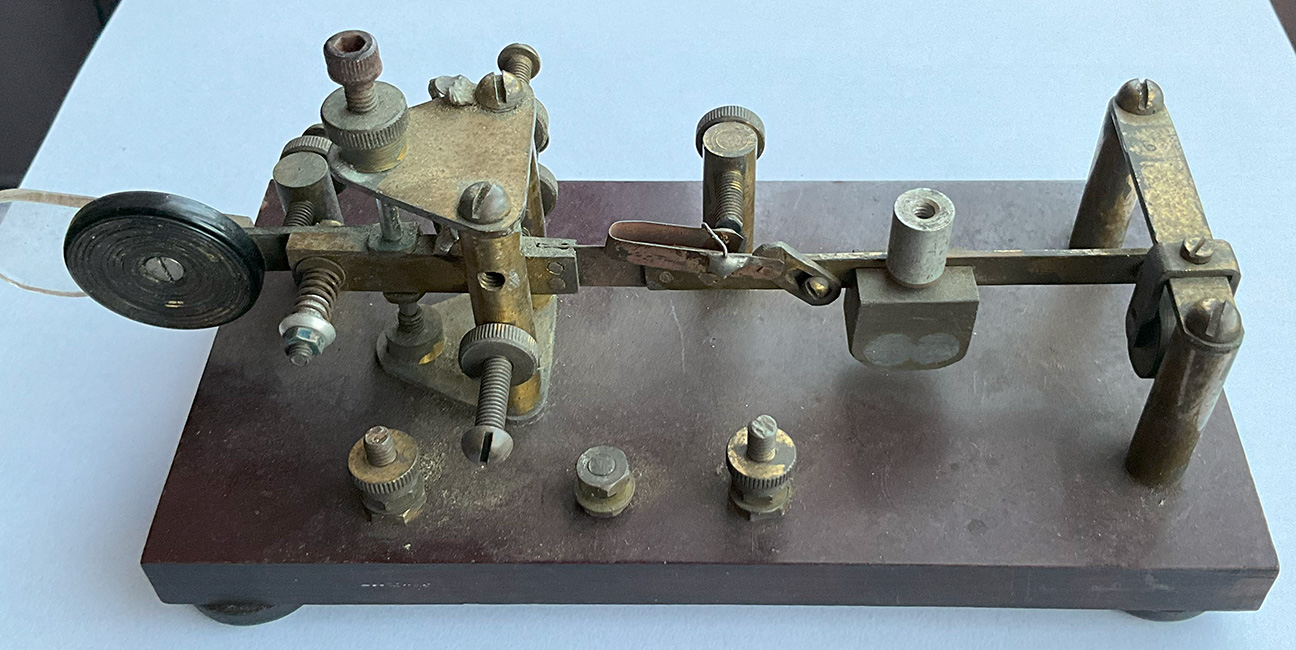

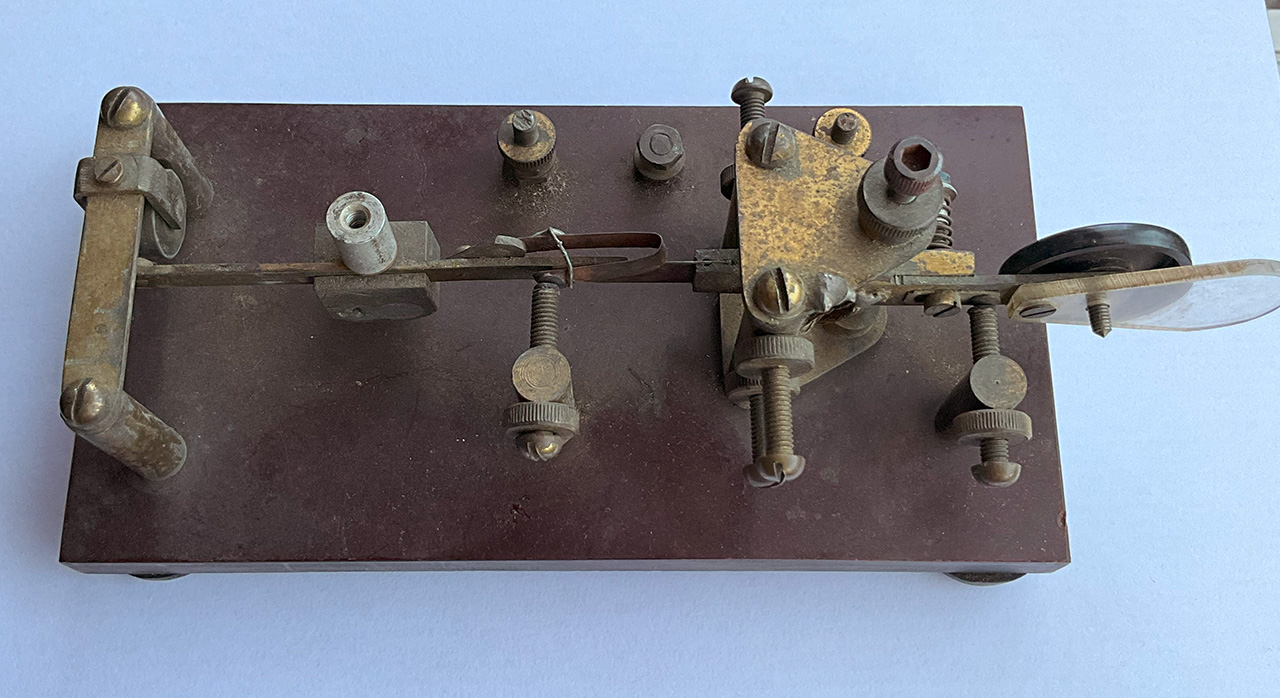

I’ve just acquired a Vibroplex bug-type Morse key. It sort of works but I don’t think I’ll be using it. Most of Vibroplex the keys I’ve seen online have a maker’s label attached. Mine has no label or markings so this begs the question, is this a genuine Vibroplex? If it is then, from what I’ve discovered, it’s a very early one. Vibroplex is the brand name of side-to-side mechanical semi-automatic keys first manufactured in 1905 by the Vibroplex Company. It was invented by Horace Greeley Martin of New York in 1904. The original device became known as a bug which was probably due to the original logo, which showed an electrified bug!


I now believe this is a homemade key. Thanks to the video viewers for the information.

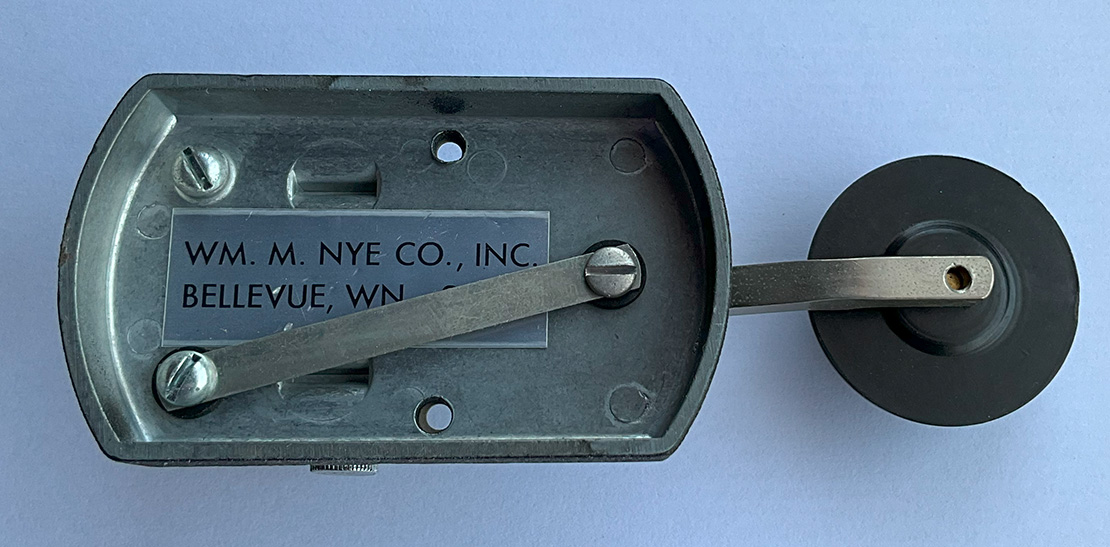

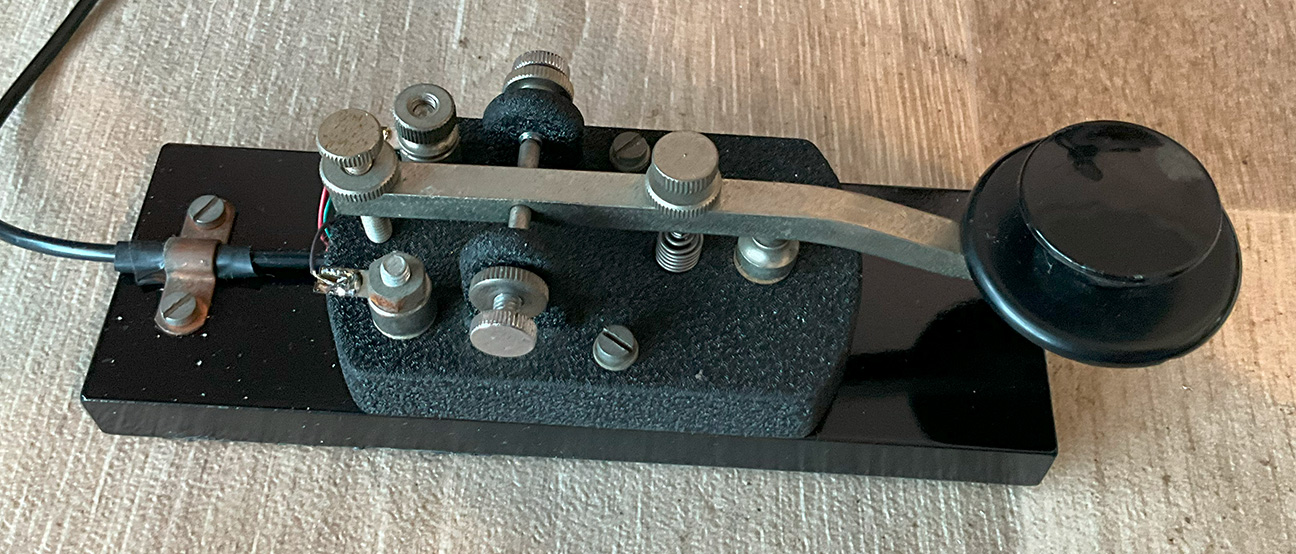

I’ve also just acquired a WM M Nye Co Inc Speed-X Telegraph Morse Key, shown below. The base is a block of steel, which I don’t think is original, so it’s very heavy! It was rusty so I rubbed it down and sprayed it. I rather like the feel of this key. It will probably be the one I use most. Nye has been making keys and paddles since 1975.


I’ve been given this. It’s an electronic keyer for paddle-type Morse keys. There’s a date stamp on the bottom, 1978, so it’s pretty old. After a few repairs, it works well! Does anyone have any info about it?

CW electronic keyer

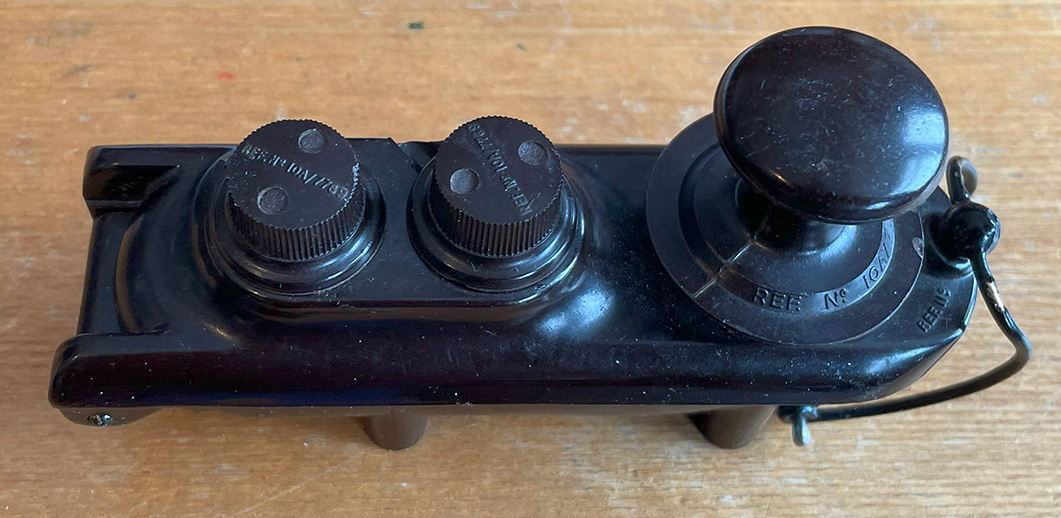

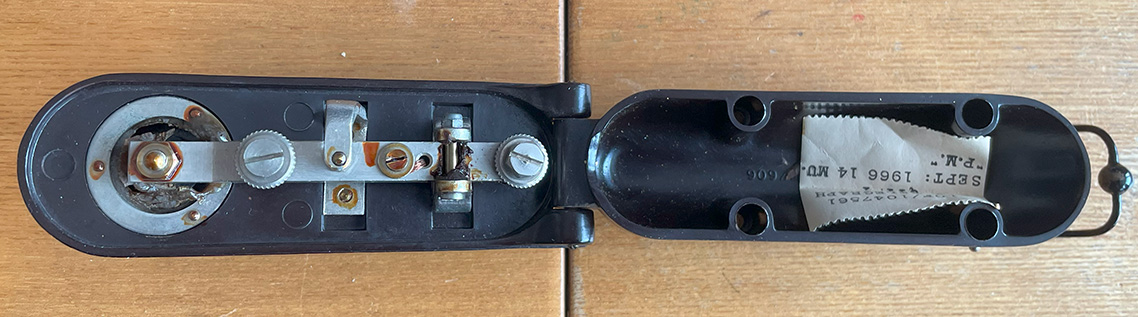

Thanks to Roy for donating this Lancaster Bomber ‘Bathtub’ Morse key. This type F Morse key was used on all RAF bomber aircraft. It’s sometimes referred to as the ‘bathtub’ morse key as it resembles an old fashioned bath. The lower photo shows they key open to allow for adjustments.

Lancaster Bomber Morse Key

Lancaster Bomber Morse Key

Morse is not scary!

Don’t be frightened of Morse code and don’t believe that it’s an outdated mode which is no longer used. Morse isn’t difficult to learn and it’s very much alive and kicking! It’s a great mode of communication which can often get through during noisy or difficult HF band conditions which can render SSB unusable.

Morse practice oscillator

I’ve just taken delivery of a Datong D70 Morse Tutor, pictured below. I had one of these decades ago, and it was an invaluable aid to learning the code. Now that I’m trying to get my speed up, the D70 is again invaluable.


Dating D70 Morse Tutor

A Video:

The video shows my Morse keys and other CW related stuff.

Interesting Frequencies.

Take a listen on 3881kHz. FAV22 Is believed to be a French Military station. M51 transmits on 6825kHz. They are both good for CW practice. The Slow CW UK group use 3555kHz for around 10 WPM contacts.
