G4NSJ – Audio Mixer Teyun A4 Behringer XENYX QX1204USB Shure MV7X Cloudlifter


I wanted a stereo pre-amp for a project and, while looking for bits and pieces on the internet, I came across this audio mixer. I decided that it would be better than a simple pre-amp and, as it was cheap, I thought I might as well give it a try. I have to say that I’m impressed. It only has two mono inputs and one stereo input so it’s nothing special. But it has built-in Bluetooth, a USB port, an MP3 player, a main output plus a recording output… and the sound quality is excellent for the price.

Teyun A4 audio mixer

Also, I can plug a memory stick into the USB socket and listen to my music through the MP3 player. As seen in the photo, there are play and pause buttons as well as next or last track. It really is an amazing piece of kit. I’m using the mixer as part of my recording set up for my podcasts. You can listen to my podcasts here.

There’s an echo effect which, although I don’t use, works very well.


This was taken from the internet so might not be accurate.

1. A multi-purpose 4-channel mixer, which can meet the needs of users for home music production, online live broadcast, K song cover, etc.
2. The mixer is equipped with, input gain and high and low bass adjustment, built-in 48V phantom power supply suitable for direct power supply of condenser microphones, high-definition headset output port, MP3 player, Bluetooth receiver, with connected PC sound card
3. MP3 player module (USB interface, with display function)
4. 2 channel signal input and 1 channel stereo signal input
5. 1 set of main channel output, 1 set of auxiliary channel output and return connector
6. 1 independent recording output and monitoring port
7. Low noise, high precision microphone preamp, clear and clean sound
8. Balanced microphone XLR input and balanced line TRS input, 3-band channel equalization
9. 48V phantom power supply to provide polarized voltage for input port and easy connection of condenser microphone
10. Headphone monitoring interface; quasi-logarithmic dual 10-bit LED level display
11. Power: 5W
12. Interface: TRS / XLR / USB / BT
13. Frequency response range: 20-20000HZ

Bomaite C6 Mixer:

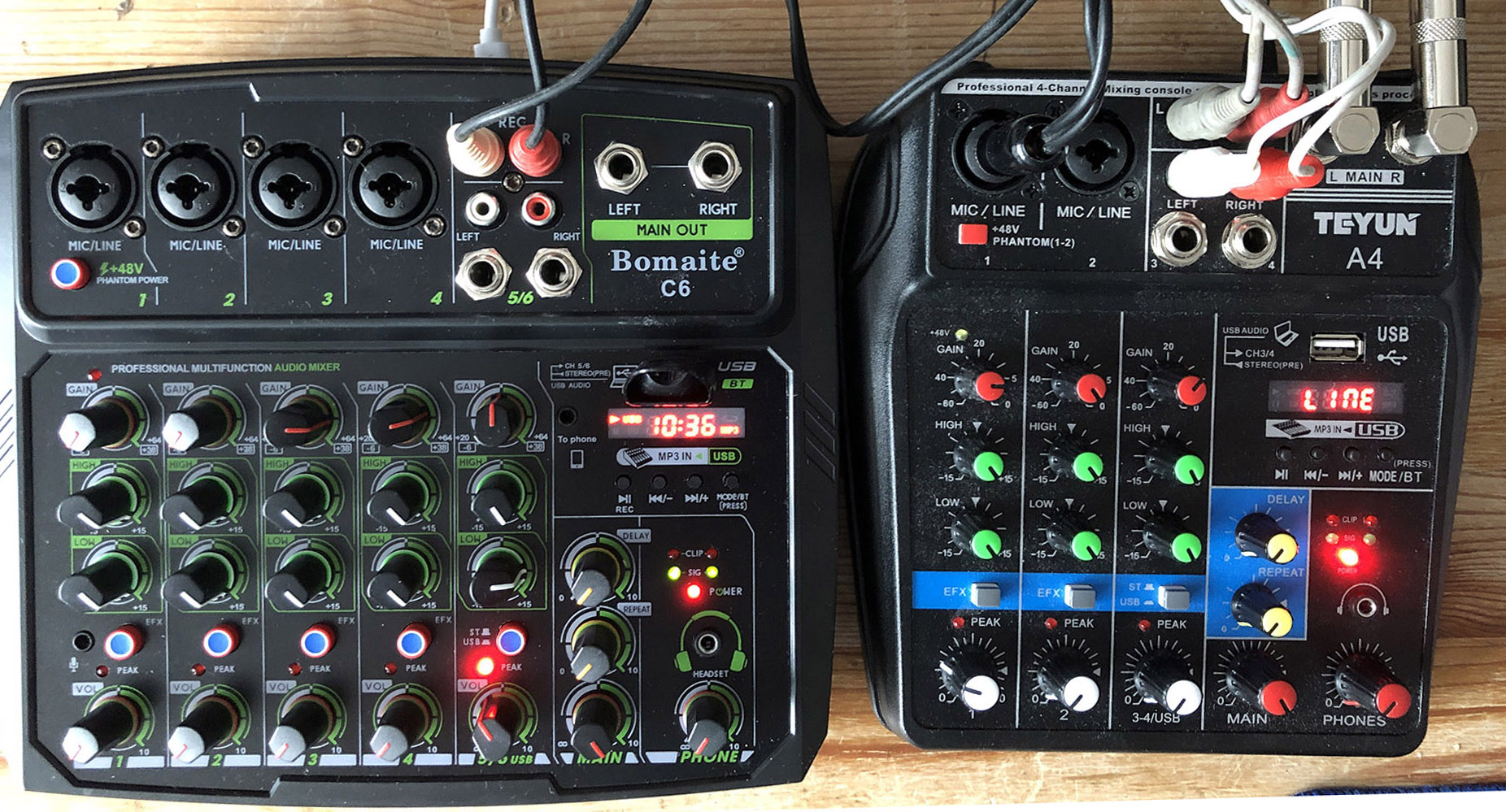

I’ve now bought another mixer, the Bomaite C6. See photo on the left below…

Bomaite C6 Mixer

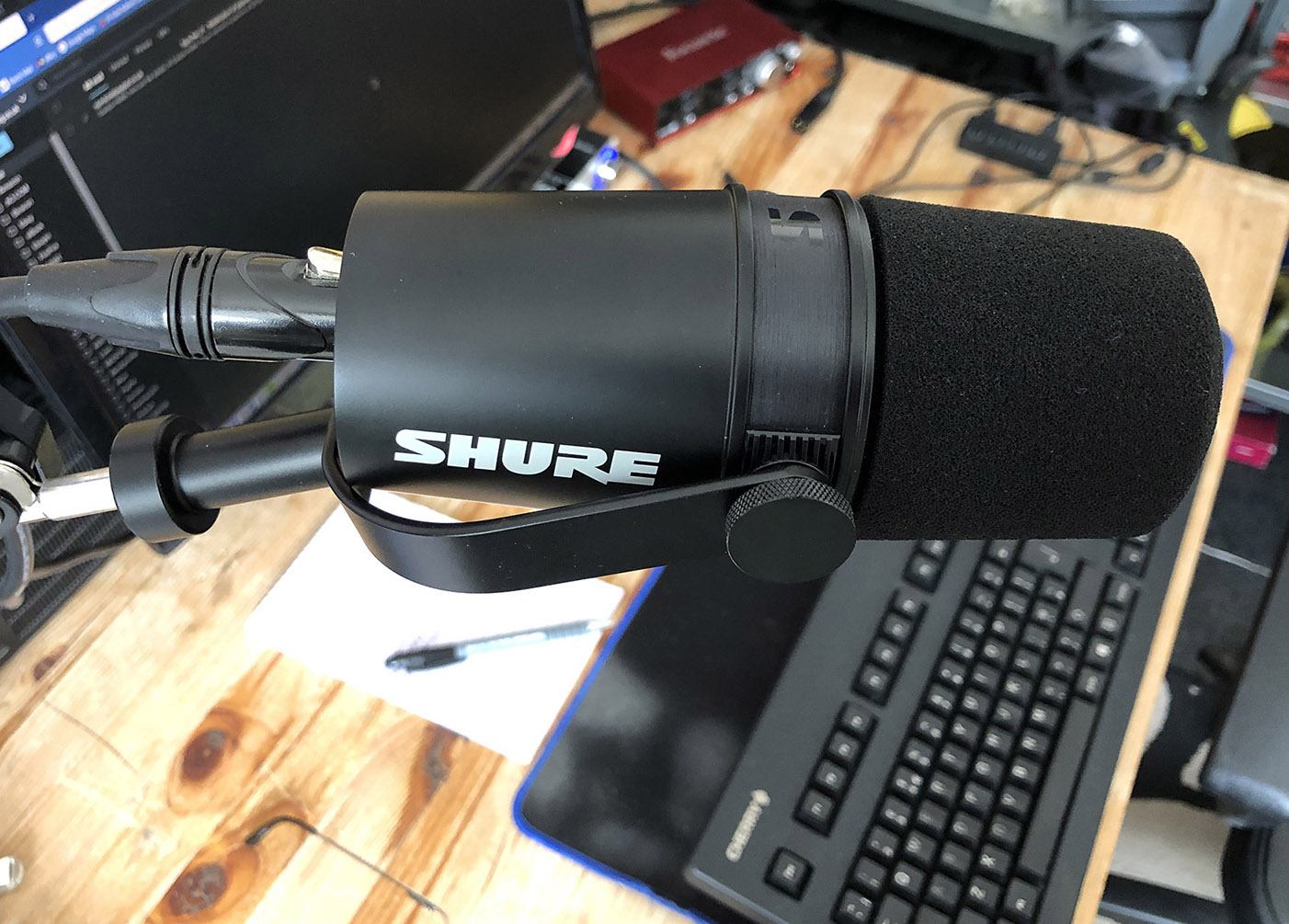

Below is my fantastic Shure MV7X microphone. Cripes! It looks and sounds rather professional!

Shure mv7x microphone


Below is my Cloudlifter CL-1. This boosts the signal from the Shure MV7X microphone by up to 25 dB before it enters the mixer.

Cloudlifter CL-1

Behringer QX1204USB Mixer:

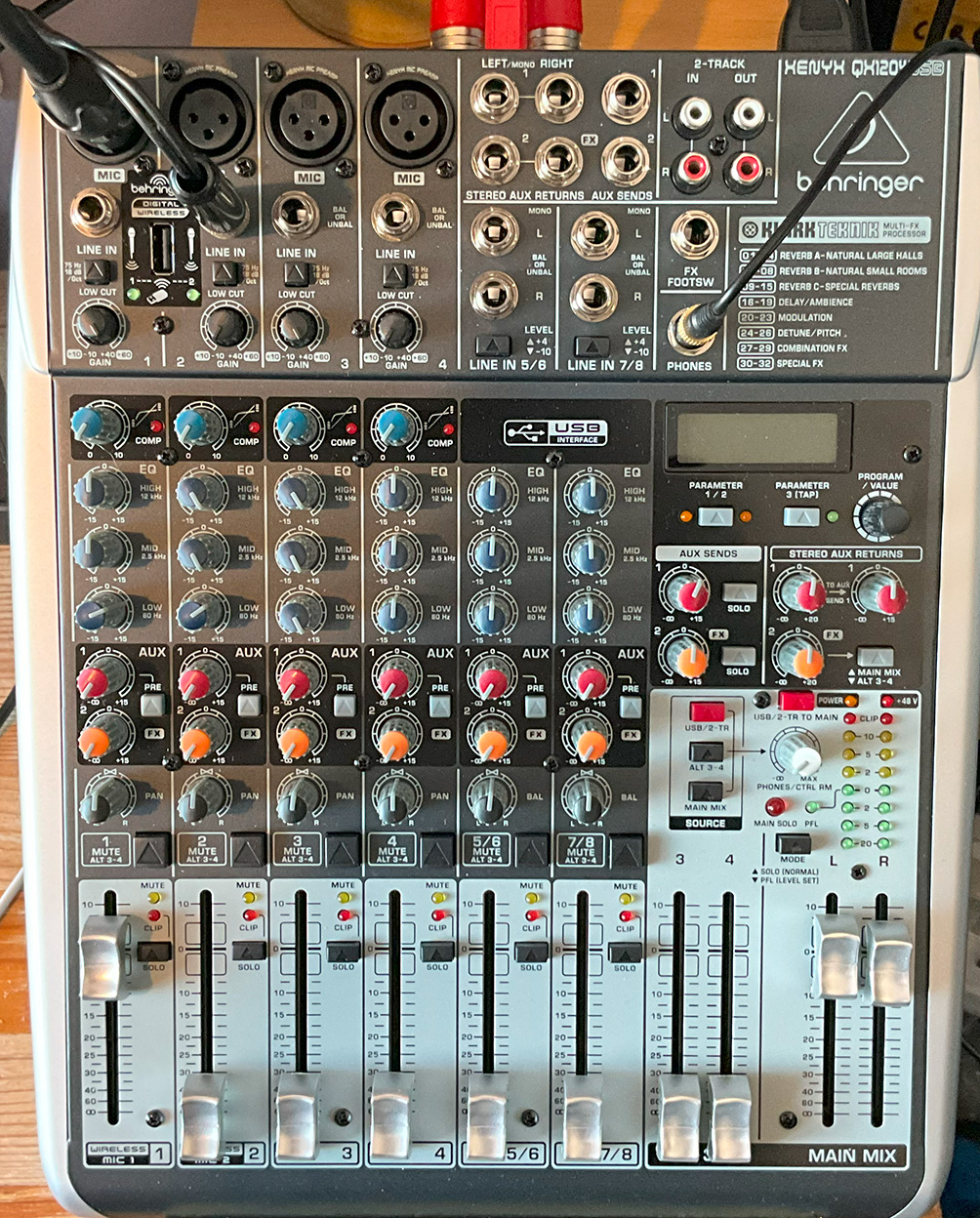

I’ve now bought a Behringer XENYX mixer, see photo below. I needed something a little more professional so I went for this excellent mixer. I’m trying to get to grips with all the functions, which will take some time, but it’s worth the effort.

Behringer XENYX QX1204USB

Mixer Info:

12-Input 2/2-Bus Mixer with XENYX Mic Preamps & Compressors, Klark Teknik Multi-FX Processor, Wireless Option and USB/Audio Interface
Ultra-low noise, high headroom mixer
4 phantom-powered XENYX Mic Preamps comparable to stand-alone boutique preamps
4 compressors with super-easy “one-knob” functionality and control LED for professional vocal and instrumental sound
Klark Teknik FX processor with LCD display, dual-parameters, Tap function and storable user parameter settings.


Below is my Shure PG58 microphone. I use this for my podcast guests.

Shure PG58 microphone
