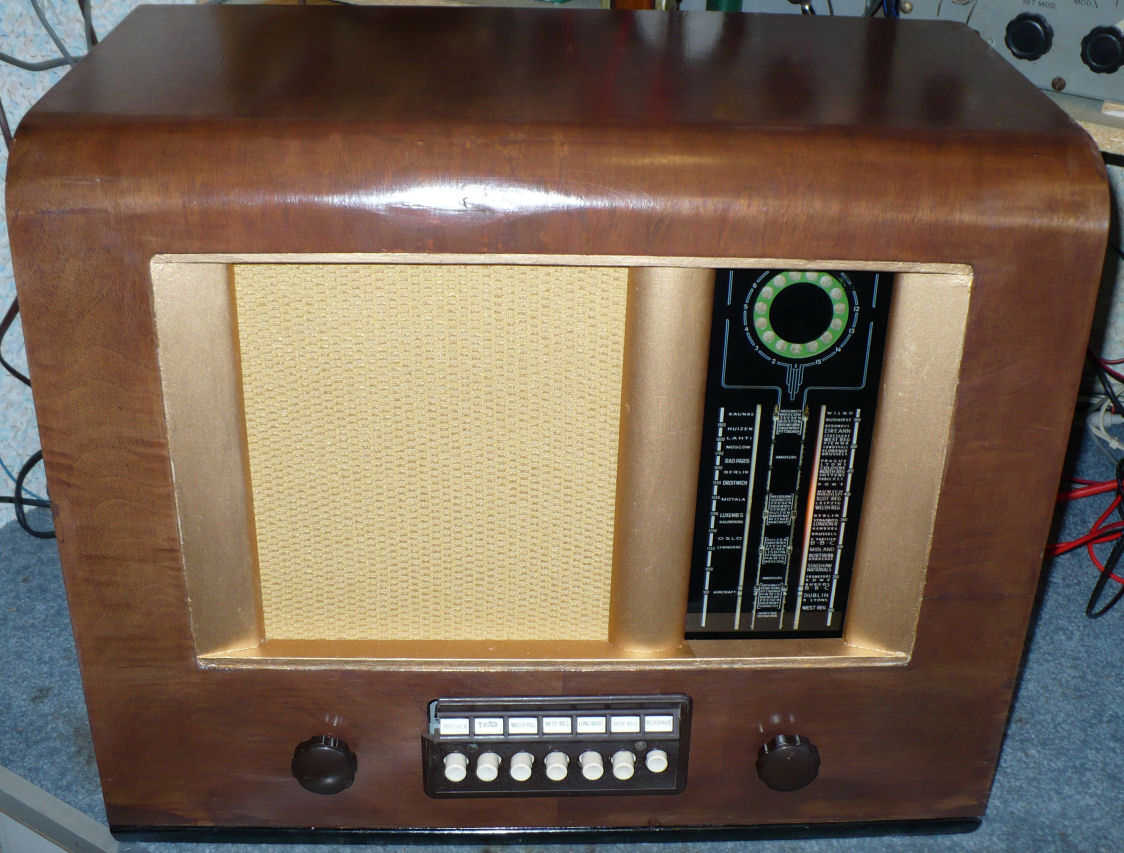

Bush PB83

bush-pb83-02RADIO SPECIFICATIONS

Manufactured from 1946
Long and Medium Wave
Valves – ECH35 EF39 EBC33 EL33 IW4/350
AC Supply
Bush PB83 Service Manual HERE



Sorry, due to lack of spares, this is a model I no longer repair.



bush-if

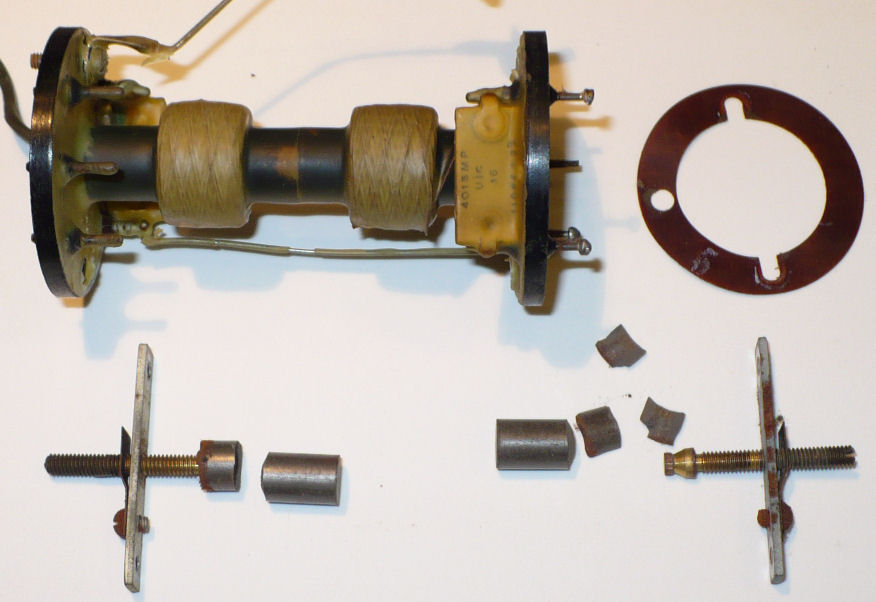

BUSH I.F. TRANSFORMER PROBLEMS

This type of IF transformer, which was used in many of the early Bush radios, has an inherent problem – the dust iron cores either break or become detached from the brass adjustment studs. Removing the transformer from the aluminum can is bad enough, and effecting a repair is a lengthy process and quite a fiddle. I use Araldite to glue the cores onto the brass studs. Obviously, they must be perfectly lined up and held in place while the glue sets.
